UOF Proxy

UOF proxy integration requires and expects responses from the unified odds feeds. So a working integration of the UOF is required. See UOF for more information.

#Prerequisites

• UOF API Key → To access the API you must visit Betradar and generate an application key associated with Betradar user details. This API key has to be sent as an HTTP header on every request towards the service.
• Store account → Sales need to submit a trial request through a customer account in Salesforce with all required products, sports, tournaments, and domains. After that, Jira issue will be generated, and order can be created.

#Unified Odds Feeds

The following UOF's are required to process over UOF infrastructure:

• Available Selections
  Will return all available (and allowed) markets for the selected sport event.
• Calculate
  Calculate probability (odds) for your selected outcomes. This is the same list as the one from available_selections, excluding the already picked markets and markets that aren't compatible with your selected outcomes.
• Markets
  Will return descriptions of all available markets
• Fixture
  Lists the fixture for a specified event
• Profile
  Name and details about a competitor (team, race driver, tennis player etc).

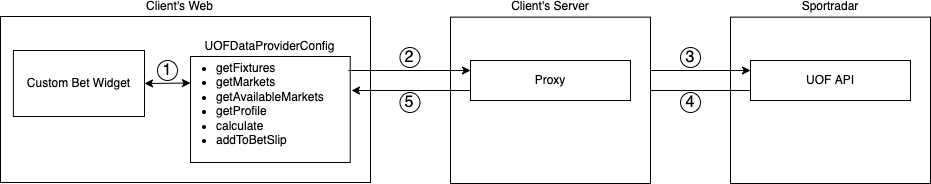

#Overview

1. Widget will request data every 30 seconds by executing functions provided to widget by UOFDataProviderConfig parameter. Widget will then update accordingly upon receiving necessary data by callback parameters. Detailed flow of data can be seen in chart below.
2. Those functions then calls proxy which needs to be implemented on clients side.
3. Proxy then needs to make requests to the Sportradar UOF API.
4. Response from the UOF API.
5. Response content from the UOF API is forwarded as string to the Custom Bet Widget.

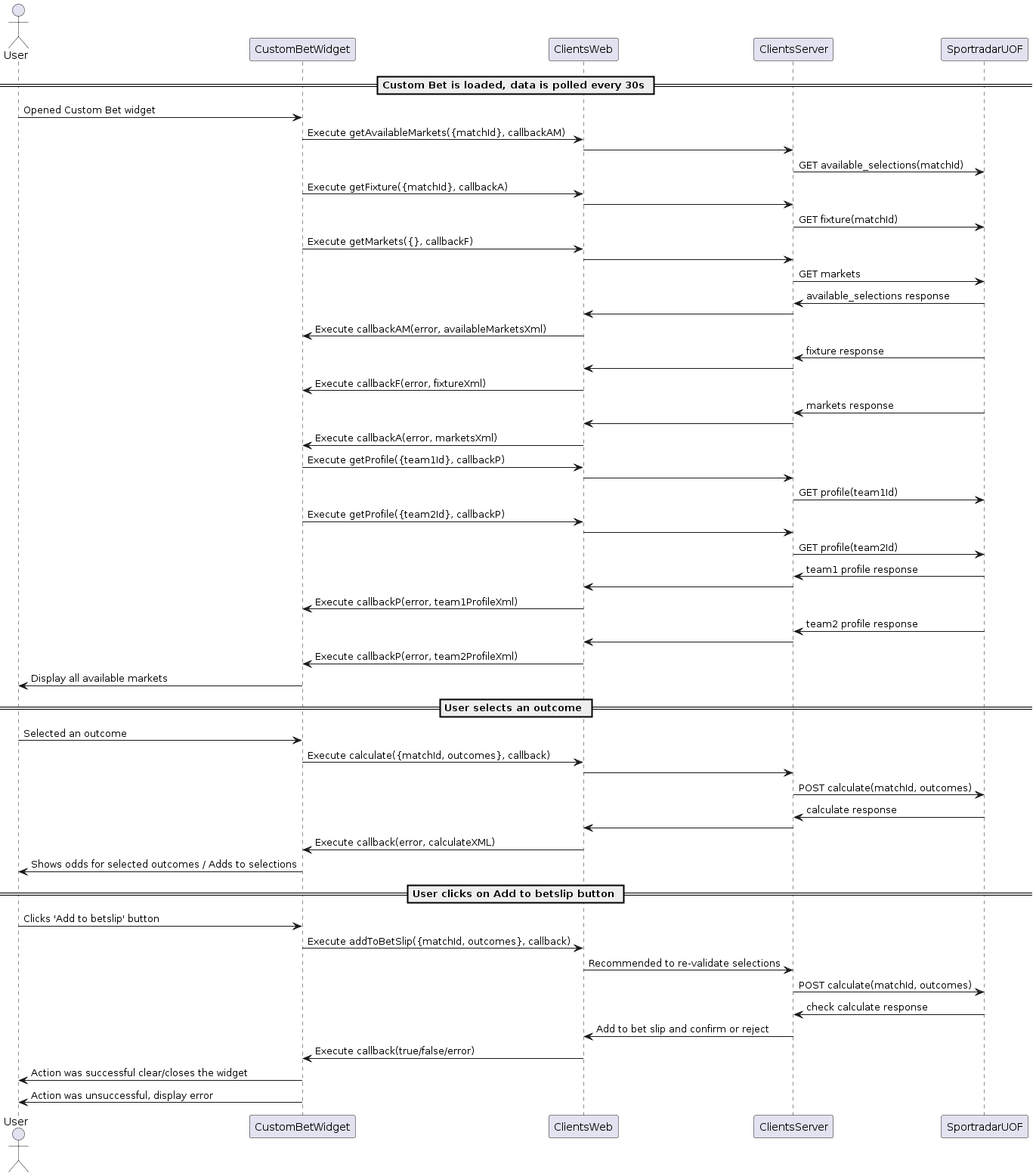

#Data Flow Chart

#Proxy Integration Example

<script>
  (function (a, b, c, d, e, f, g, h, i) {
    /* SIR function code */
  })(
    window,
    document,
    "script",
    "https://widgets.sir.sportradar.com/betradar/widgetloader"

#UOFDataProviderConfig

Collection of functions used for communication between the widget and client code. The widget calls these functions every 30 seconds to refresh data.

#Types

#UOFDataProviderCallback

Callback function shared by all data provider functions. Pass UOF XML response as a string.

Example:

// Success
callback(false, xmlString);

// Error
callback({ type: 1, message: "Could not fetch data" });

#getFixture

Fetches fixture data for a given match. It is given matchId and expects callback function UOFDataProviderCallback to be executed with UOF data.

function getFixture(args, callback) {
  fetch(`${apiUrl}/v1/sports/${lang}/sport_events/${args.matchId}/fixture.xml`)
    .then((res) => (res.ok ? res.text() : Promise.reject(res)))

#getMarkets

Fetches all market descriptions. No arguments are required. Expects callback function UOFDataProviderCallback to be executed with UOF data.

function getMarkets(args, callback) {
  fetch(`${apiUrl}/v1/descriptions/${lang}/markets.xml?include_mappings=true`)
    .then((res) => (res.ok ? res.text() : Promise.reject(res)))
    .then((xml)

#calculate

Calculates probability (odds) for selected outcomes. It is given matchId and selectedOutcomes, and expects callback function UOFDataProviderCallback to be executed with UOF data. Sends selections as XML via POST.

function calculate(args, callback) {
  var body = `<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
    <filterSelections xmlns="http://schemas.sportradar.com/custombet/v1/endpoints">
      <selection id="${args.matchId}">
        ${args.selectedOutcomes.map((o) => o.getSelection())

#getAvailableMarkets

Fetches all available (and allowed) markets for a match. It is given matchId and expects callback function UOFDataProviderCallback to be executed with UOF data.

function getAvailableMarkets(args, callback) {
  fetch(`${apiUrl}/v1/custombet/${args.matchId}/available_selections`)
    .then((res) => (res.ok ? res.text() : Promise.reject(res)))
    .then(

#getProfile

Fetches competitor (team/player) profile data. It is given teamId and expects callback function UOFDataProviderCallback to be executed with UOF data.

function getProfile(args, callback) {
  fetch(`${apiUrl}/v1/sports/${lang}/competitors/${args.teamId}/profile.xml`)
    .then((res) => (res.ok ? res.text() : Promise.reject(res)))
