#Intended Audience

This tutorial is for:

Frontend developers integrating Sportradar widgets
UX engineers improving perceived performance during widget loading
Developers familiar with basic widget integration
Those wanting to enhance user experience with loading states

#Goals

By completing this tutorial, you will:

Understand the widget loading lifecycle and timing
Implement a custom loading indicator for widgets
Use the onTrack callback to detect when widgets are ready
Handle the transition from loading state to loaded widget
Troubleshoot common loading indicator issues
Improve perceived performance with visual feedback

#Prerequisites

Before starting this tutorial, ensure you have:

Valid Sportradar Widget license - Contact Sales if needed
Basic HTML/CSS/JavaScript knowledge - DOM manipulation, CSS animations, event handling
Completed Getting Started Guide - Understanding of basic widget integration
Web development environment - Text editor and modern browser

info

This tutorial uses the onTrack callback, which is a core widget feature available for all widget types.

#Overview

Widget loading happens in multiple asynchronous phases:

Script download - Widgetloader framework is fetched
Widget registration - SIR function becomes available
Widget initialization - Widget code replaces target element content
Data fetching - Widget requests match/tournament data
Rendering - Widget displays components or error

warning

The time between widget initialization and data rendering can vary from milliseconds to several seconds depending on network conditions. A loading indicator improves user experience during this wait.

#The Challenge

Users see a blank space while widgets load, which can:

Create confusion about whether the page is working
Make the page feel slow or broken
Reduce user confidence in your integration

A loading indicator provides visual feedback that content is on the way.

#Tutorial Steps

Start with a standard widget integration. The widgetloader script downloads asynchronously, then the SIR function loads the widget.

html

<script>
    (function(a,b,c,d,e,f,g,h,i){a[e]||(i=a[e]=function(){(a[e].q=a[e].q||[]).push

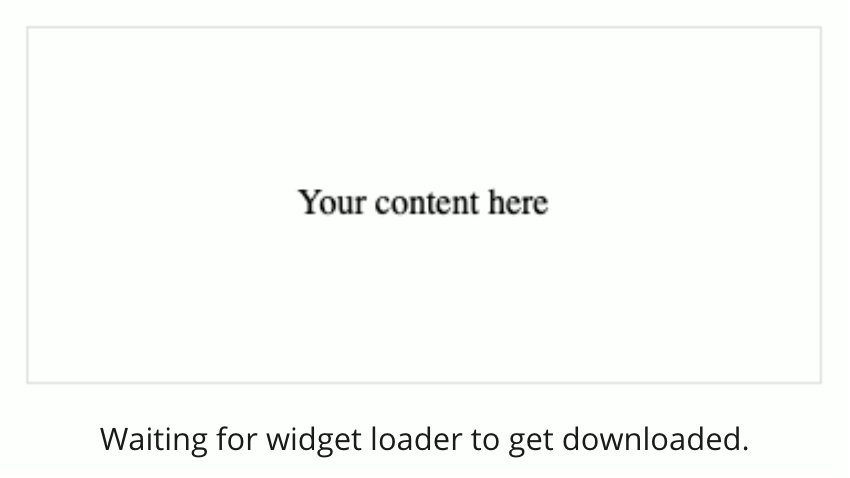

#What Happens During Loading

#Step 2: Create the Loading Indicator

Add a separate element for your loading indicator. Keep it outside the widget's target element.

#HTML Structure

html

<div class="widgets">
    <!-- Widget target element - will be populated by widget code -->
    <div id="sr-widget-1" class="box"></div>

    <!-- Separate element for loading indicator -->
    <div id="your-content" class="box">
        <div class="loader"></div>
    </div>
</div>

warning

Critical: Never add the loading indicator inside the widget's target element (#sr-widget-1). The widget will replace all content in that element when it initializes.

#CSS Styling

Add styles to size the elements and animate the loader.

View Complete CSS

css

body {
    display: flex;
    justify-content: center;
}

.widgets {
    max-width: 360px;
    width: 100%;
}

/* Set same size for widget and loader containers */
.box {
    border

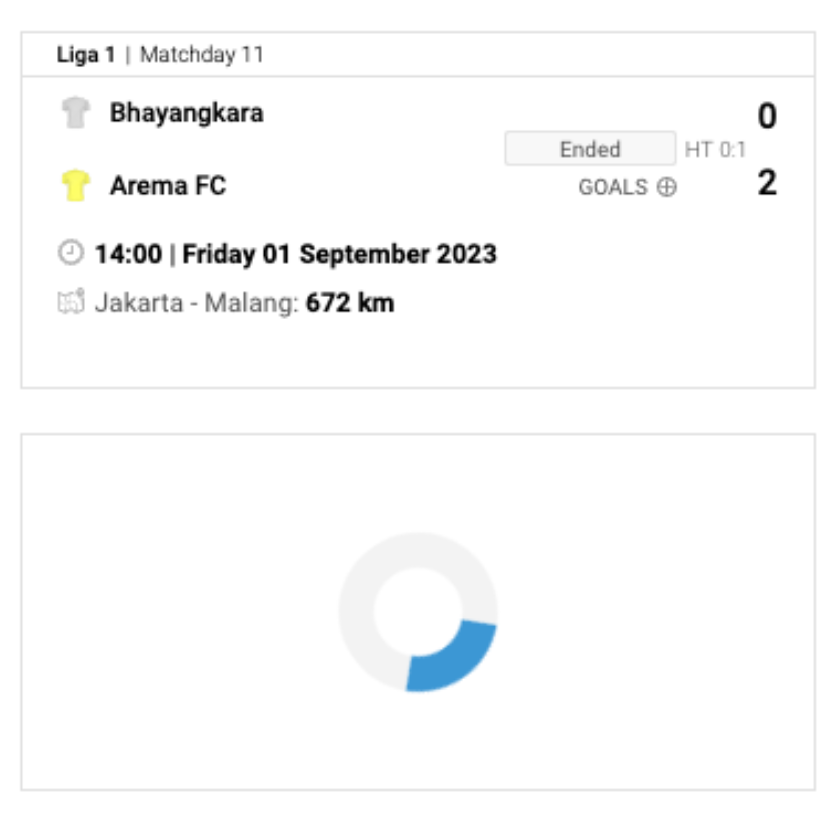

#Visual Result

#Step 3: Implement the Loading State Logic

Use the onTrack callback to detect when the widget has loaded data, then swap visibility between the loader and widget.

#Add the onTrack Callback Function

let widgetHasInitialized = false;

function onTrack(target, data) {
    // Listen for 'data_change' event - fired when widget receives data
    if (target === "data_change" && !data.error && !widgetHasInitialized) {
        // Show the widget
        document.getElementById('sr-widget-1').style.

info

The data_change Event: This event fires when the widget successfully receives data. If data.error is undefined, the widget will render successfully.

SIR("addWidget", "#sr-widget-1", "match.scoreboard", {
    matchId: 41960917,
    onTrack: onTrack
});

Add CSS to hide the widget element until data loads.

css

/* Hide widget until data loads */
#sr-widget-1 {
    display: none;
}

#Complete Integration

View Complete Working Example

html

<!DOCTYPE html>
<html>

#Troubleshooting

#Issue: Loading Indicator Disappears Too Early

Symptom: The loading indicator vanishes before the widget displays, leaving a blank space.

Cause: The loading indicator was placed inside the widget's target element.

Incorrect Implementation:

html

<!-- ❌ DON'T DO THIS -->
<div id="sr-widget-1" class="box">
    <!-- This will be removed when widget initializes! -->
    <div id="your-content" class="box">
        <div class="loader"></div>
    </div>
</div>

Correct Implementation:

html

<!-- ✅ DO THIS -->
<div class="widgets">
    <!-- Widget target - empty, will be filled by widget -->
    <div id="sr-widget-1" class="box"></div>

    <!-- Loader in separate element -->
    <div id="your-content" class="box">
        <div class="loader"></div>
    </div>
</

Cause: Forgot to hide the widget element initially with CSS.

Solution: Add CSS to hide the widget until data_change fires:

css

#sr-widget-1 {
    display: none;
}

Cause: The onTrack callback isn't firing or has incorrect logic.

Solution: Verify:

onTrack is passed to widget configuration
Element IDs match exactly
You're checking for target === "data_change"
Browser console shows no JavaScript errors

#Advanced: Handling Errors

You can extend the onTrack callback to handle loading errors:

function onTrack(target, data) {
    if (target === "data_change" && !widgetHasInitialized) {
        widgetHasInitialized = true;

        if (data.error) {
            // Handle error state
            document.getElementById('your-content').innerHTML =

#Key Takeaways

Separate Elements

Always keep the loading indicator in a separate element from the widget's target. The widget replaces its target element's content.

Use onTrack Callback

The onTrack callback with data_change event is the reliable way to detect when a widget has loaded and is ready to display.

Hide Widget Initially

Start with the widget hidden (display: none) and only show it after the data_change event confirms successful loading.

#Further Reading

#Core Documentation

Getting Started Guide - Basic widget integration
Widget Events (onTrack) - Complete event reference
Widget Configuration - All configuration options

Widget Visibility in Carousels - Managing visibility in dynamic layouts
Error Handling - Comprehensive error handling guide

#Performance Resources

Web.dev: Perceived Performance - Why loading indicators matter
MDN: CSS Animations - Creating custom loaders
MDN: display Property - Understanding display values
